By Martin Iturbide

* 2014-07 Update: This instructions also apply for Windows 8.1

I don't now why but I always like to write Dual Boot articles from time to time.

On this time I bought myself a new 2TB Hard disk and installed eComStation 2.1 and Windows 8 in a dual boot configuration.

For this case I choose to use Windows Boot Manager as my boot manager.

This article shows pictures step by step.

Contents

Starting Installing eComStation 2.1

I started installing eComStation on the new hard drive. So I plugged the new HDD and put the eComStation CD-ROM to boot from it.

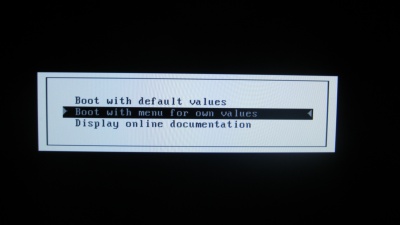

Choose to boot with "own values" to configure your machine specs:

DualB 0 and 13.JPG

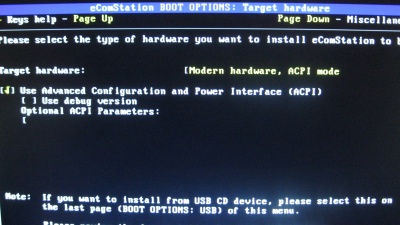

I made the cd to boot with ACPI driver.

DualB 1.JPG

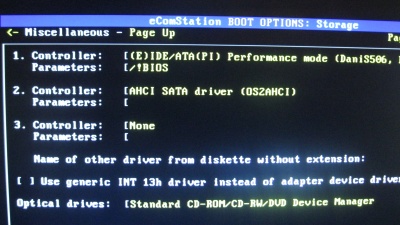

I also has the AHCI mode enabled, so I had to turn this on too.

DualB 2.JPG

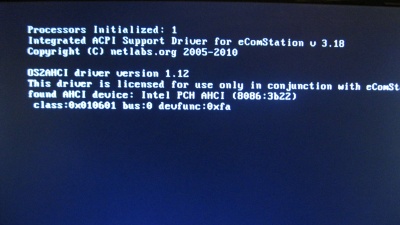

It will boot and you will see that I enabled that two drivers.

DualB 3.JPG

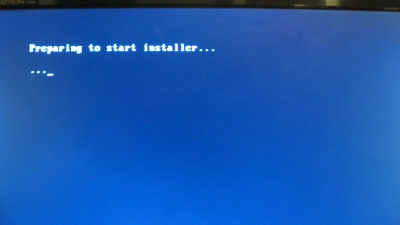

ok, it is loading..

DualB 4.JPG

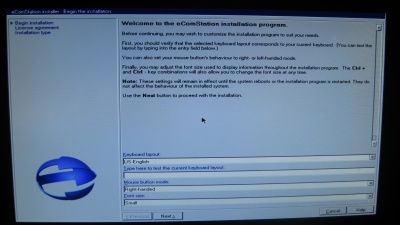

First page of the installation...

DualB 5.JPG

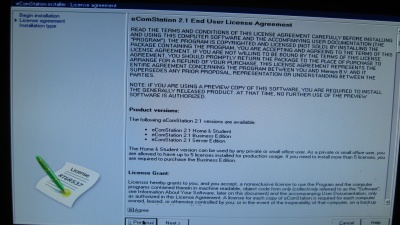

The agreement...

DualB 6.JPG

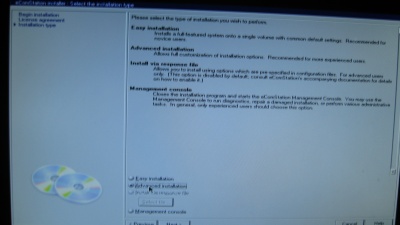

I'm advanced, came on...

DualB 7.JPG

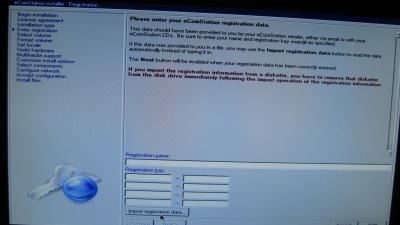

Yes, it requires a serial number.

DualB 8.JPG

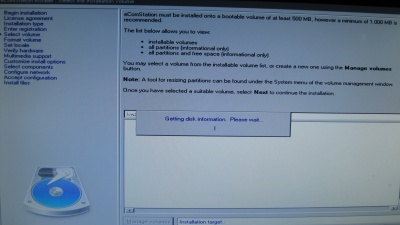

Now it will start looking at your drives.

DualB 9.JPG

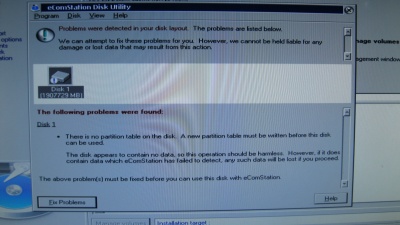

Bang... it will show you a drive with a problem. No partition data, no table. Let's fix it.

DualB 10.JPG

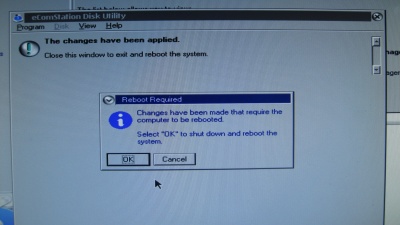

It will fix it and click "ok".

DualB 11.JPG

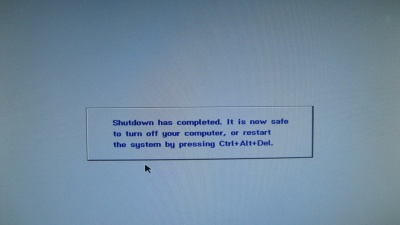

But, you have to pay for such an easy fix with a reboot.

DualB 12.JPG

Now start all over. Select own values and advance forward on the install menu.

DualB 0 and 13.JPG

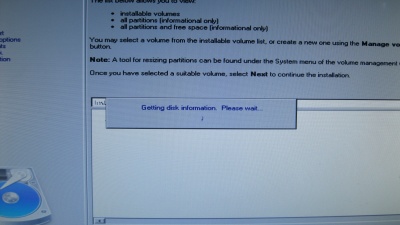

We are getting the drive information again.

DualB 14.JPG

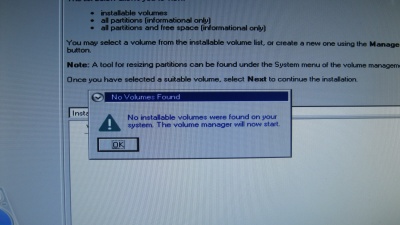

Bang!!! no installable partitions. Click "ok" to start the volume manager.

DualB 15.JPG

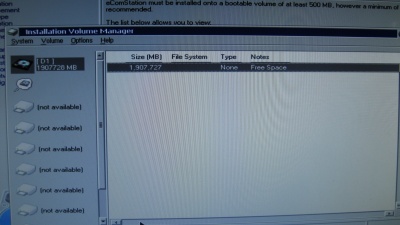

Now we are in the volume manager and we can see our HDD.

DualB 16.JPG

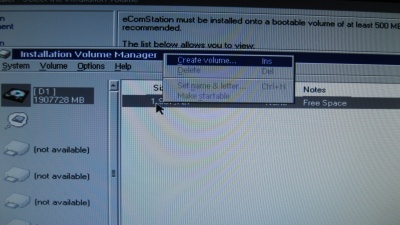

Create volume by right clicking on it.

DualB 17.JPG

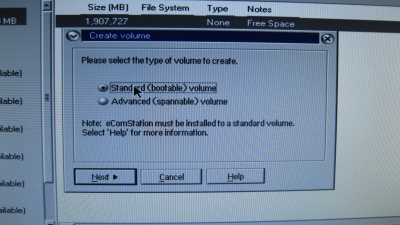

We are going to start with the eComStation one at the beginning of the HDD.

DualB 18.JPG

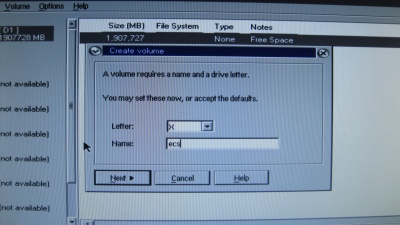

I like the "X"

DualB 19.JPG

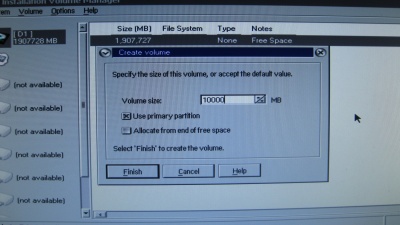

Set it size. Some 10GB will be ok. And remember to use it as primary partition.

DualB 20.JPG

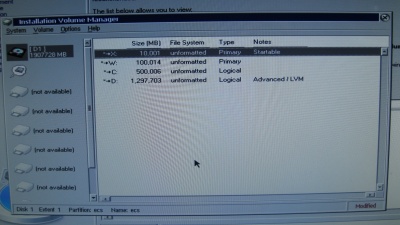

Here I went a little bit forward and creating two other primary partitions

  • X: Primary for eComStation 10GB
  • W: Primary for something else (not defined yet)
  • C: Logical for Windows - 500GB
  • D: Logical for some programs. (Please do not make it LVM, it was a mistake on the picture).

So now you see how I'm going to organize the partitions for the dual boot.

DualB 21.JPG

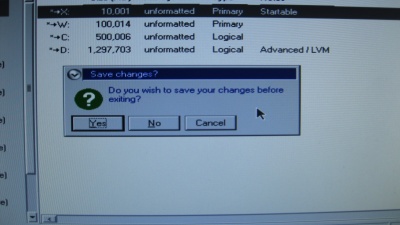

Let's accept the changes.

DualB 22.JPG

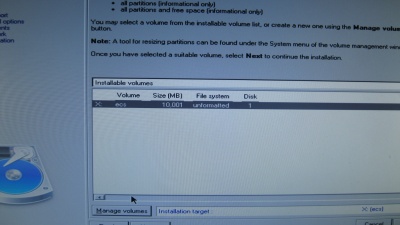

And now you see an startable partition to install eComStation.

DualB 23.JPG

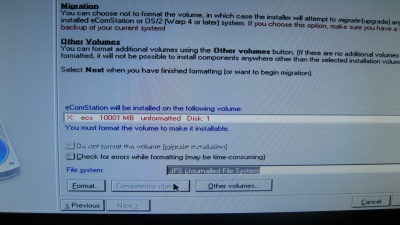

Next you will be asked to format the partition that you set as startable to install eCS.

DualB 24.JPG

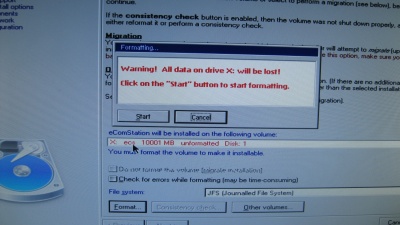

Select "Start"

DualB 25.JPG

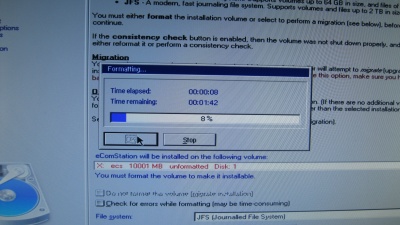

Wait a little bit...

DualB 26.JPG

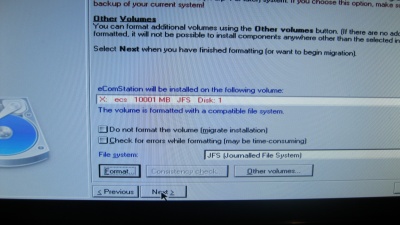

Once it is formated, you can click "next".

DualB 27.JPG

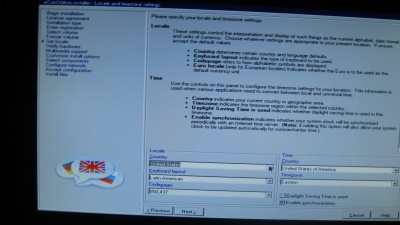

Select the languages stuff.

DualB 28.JPG

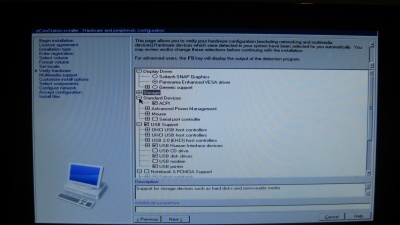

Select the drivers.

DualB 29.JPG

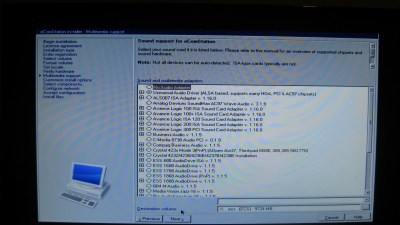

Select the Audio drivers

DualB 30.JPG

The folders set up.

DualB 31.JPG

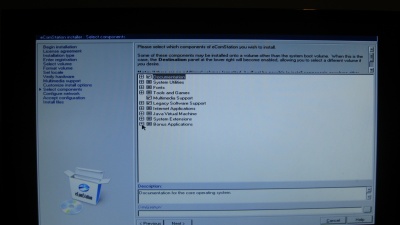

Here are some packages you can choose to install.

DualB 32.JPG

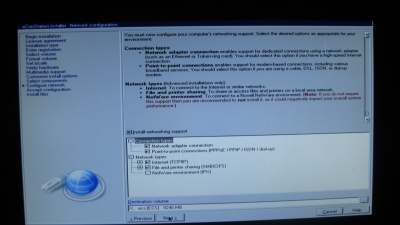

The network stuff that needs to be installed.

DualB 33.JPG

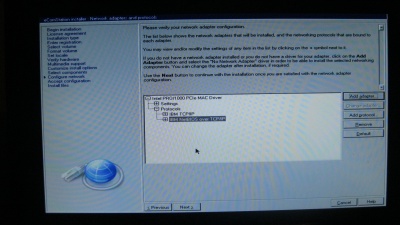

Here goes the network protocols. Don't forget TCP/IP.

DualB 34.JPG

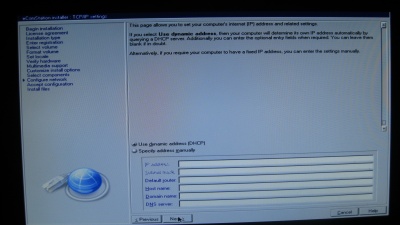

Sure, here goes my IP... no way all DHCP.

DualB 35.JPG

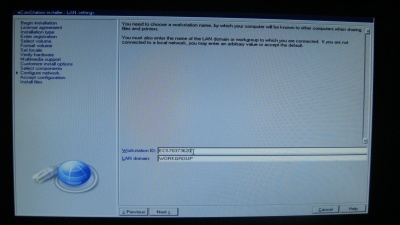

The network name and workgroup.

DualB 36.JPG

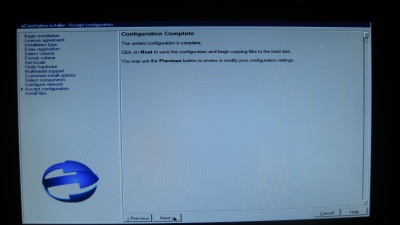

One more "Next Button" to start...

DualB 37.JPG

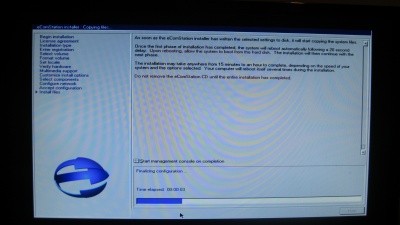

Now it started installing the files.

DualB 38.JPG

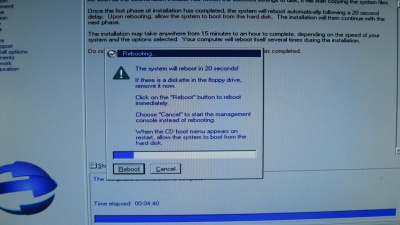

There goes a reboot

DualB 39.JPG

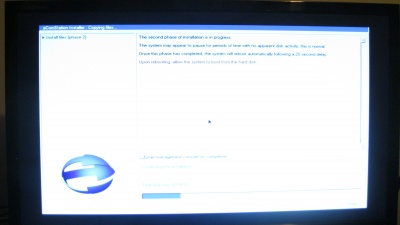

Installing more files

DualB 40.JPG

A Minion shows up there.

DualB 41.JPG

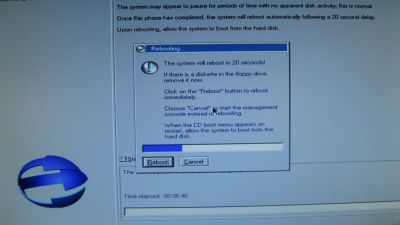

More install, more reboot... I think this is the last one.

DualB 42.JPG

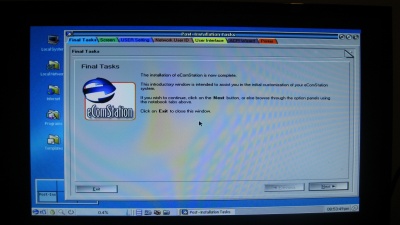

Finally, we have eComStation installed.

DualB 43.JPG

Installing Windows 8

Now we are going to proceed to install Windows 8.

Remember that I set some space on the HDD and I have a 500GB "C:" Logical partition un formatted. On this one I choose to install Windows 8.

Once you install Windows it will break eComStation 2.1 boot sector, but it will not break the partition.

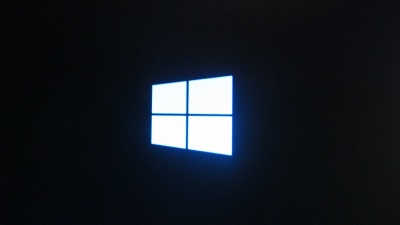

So, you boot with Windows installation CD-ROM

DualB Win8 1.JPG

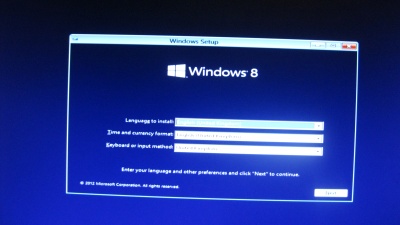

It asks you for language and keyboard

DualB Win8 2.JPG

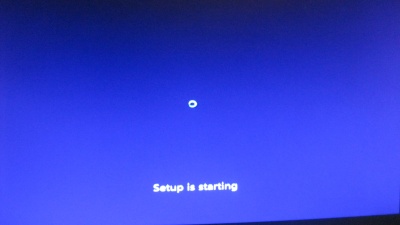

Starts setup

DualB Win8 3.JPG

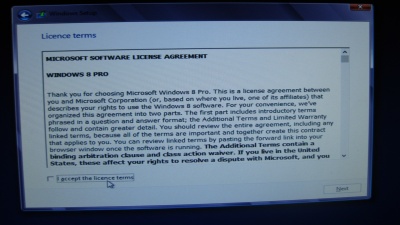

You make MS lawyers happy by clicking "Agree".

DualB Win8 4.JPG

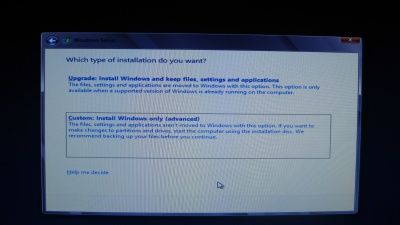

Here you need to select "CUSTOM". Maybe the other option will go terrible wrong.

DualB Win8 5.JPG

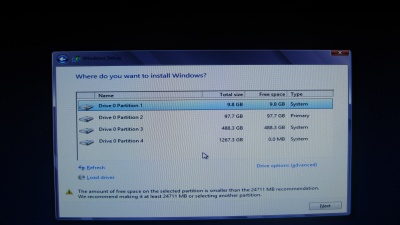

Here is where the magic begin, remember that this was how we made the partition on eComStation.

DualB Win8 6.JPG

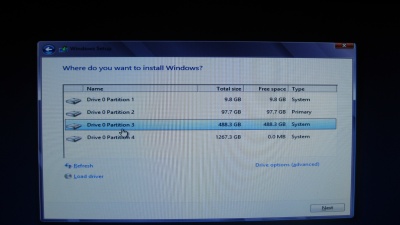

So we select the partition when when want Windows to be installed. Do not resize the partitions here or everything will be lost.

DualB Win8 7.JPG

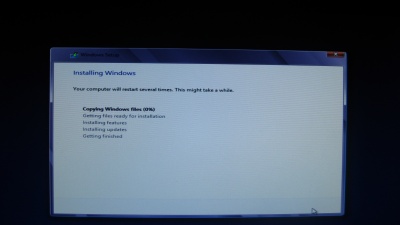

Sit back and see how Windows installs the files.

DualB Win8 8.JPG

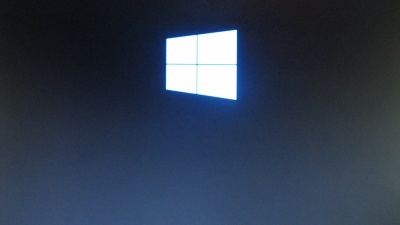

It boots...

DualB Win8 9.JPG

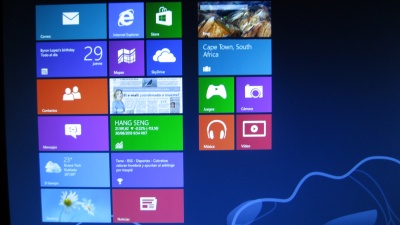

And here we have the useless "Metro" Windows 8 GUI installed with the rest of Windows.

DualB Win8 10.JPG

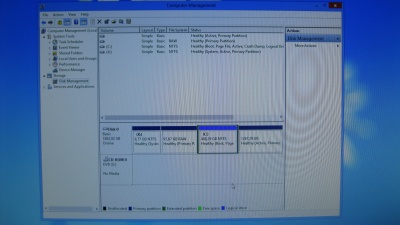

Now just lets check how Windows sees the partitions on the "Configurator Manager".

DualB Win8 12.JPG

Installing/Configuring EasyBCD on Windows 8

So, if we are going use "Windows Boot Manager" for dual boot the easy way is to download and install "EasyBCD" program. This program will make it easy and graphically for us to add more OSes on the Windows boot meny.

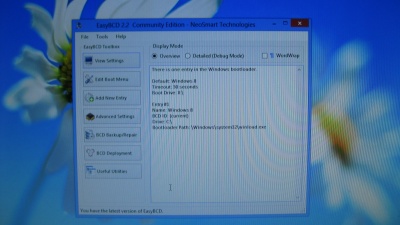

Once we run the program we see it this way, only Windows 8 is on the boot loader.

DualB EasyBCD 1.JPG

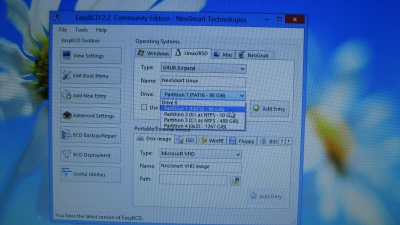

We click "Add new Entry" and put the eComStation partition on it, like it was a GRUB Legacy Linux partition.

DualB EasyBCD 2.JPG

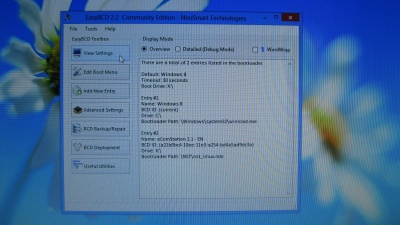

After saving we will see the two entries on the EasyBCD menu.

DualB EasyBCD 4.JPG

On the next restart we are going to see Windows asking us which OS to run.

DualB EasyBCD 5.JPG

Restoring eComStation 2.1 if Windows 8 breaks it boot sector

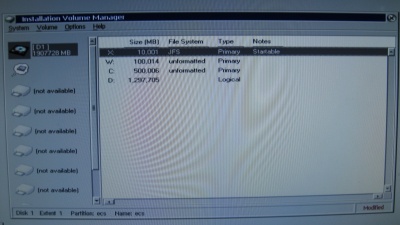

Windows 8 is a bad boy, so it may break eComStation boot sector when installing. If that happens you only need to boot with the eComStation CD in maintenance mode and select the eComStation partition as startable.

DualB fixeCS-1.JPG

But it is possible that this will remove "Windows Boot Manager". Check on the Windows 8 instructions to recover the Windows 8 Boot.

Restoring Windows 8 if eComStation breaks it boot sector

If when trying to recover the eComStation boot sector on your machine, you noticed it turned off the "Windows Boot Manager" here are some instructions to recover it.

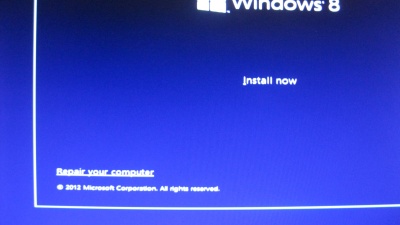

Boot the Windows 8 CDROM as "Repair".

DualB FixW8 1.JPG

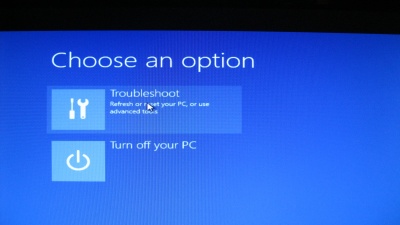

Choose "Troubleshoot"


DualB FixW8 2.JPG

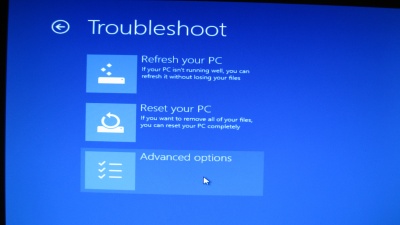

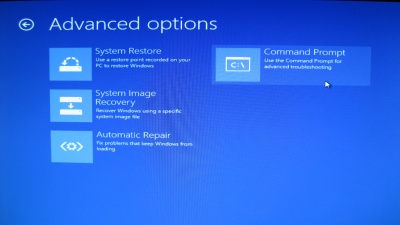

Let's go to "Advanced Options"

DualB FixW8 3.JPG

..and lets run the "Command Prompt"

DualB FixW8 4.JPG

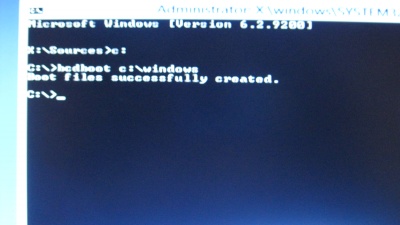

We can recover the Windows Boot manager by running "bcdboot c:\windows" from the C: drive.

As a side note it also good for you to read how to use Windows diskpart [1] and how to change drive letters from the command line.

DualB FixW8 6.JPG

On the next reboot Windows Boot Manager will be enabled and both OSes should run without problems.

Errors and Limitations

Geometry Error

Be carefull to resize the partitions from other non-eComStation systems. eComStation still has some limitations to recognize partitions.

For example. If you resize a partition from a Windows program, on the same HDD where eCS is installed, it may break eCS boot and eComStation will not recognize the partitions anymore.

It will show you an error like this one:

DBoot Error2 - Geometry.JPG

The only workarround is to erase the HDD and repartition it with eComStation.


Miss Aligned Boot Sector

This is other kind of error that can show up on eComStation installation.

DBoot Error1 - MissbootSect.JPG
