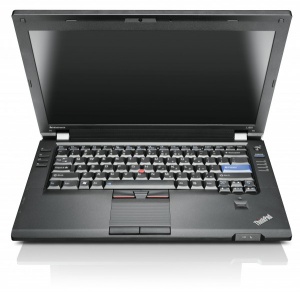

Lenovo ThinkPad L420

From OS2World.com Wiki
Jump to: navigation, search

Contents

General Specs

  • Model Number: 7856-3WS
  • Processor:Intel Core i5-2410M
  • Memory:4GB RAM
  • HDD:
  • Graphics:Intel HD Graphics 3000
  • Chipset: Intel HM65 (Cougar Point) [B3]

Devices

Component Name HardwareID Status Driver
Processor Intel Core i5-2410M Check.gif ACPI
HDD Advanced Host Controller Interface Check.gif OS2AHCI
Audio RealTek ALC269 / Intel Cougar Point PCH - High Definition Audio Controller [B2] 10EC:0269 / 8086:2805 Nope.gif
Video Intel HD Graphics 3000 8086:0116 Check.gif Panorama
USB USB external/Internal ports Check.gif Included on eCS and Lars too.
Network RealTek Semiconductor RTL8168D/8111D PCI-E Gigabit Ethernet Adapter 10EC:8168 Check.gif Multimac R8169.OS2
Wireless Network Intel Centrino Advanced-N 6205 AGN 2x2 HMC 8086:0085 Nope.gif
Wireless Bluetooth Broadcom Bluetooth Device 0A5C:217F Nope.gif Not Supported
FingerPrint Reader UPEK TouchStrip Fingerprint Sensor 147E:1002 Nope.gif Not Supported
Express Card - Nopebl.gif Not tested
WebCam Chicony Integrated Camera 05C8:0317 Check.gif USBECD

General Comments

Instalation Procedure

Install eComStation 2.1 on this machine using a USB external mouse.

Boot with custom setting from the CD-ROM and enable the AHCI driver. From that you can follow the installation procedure normally.


Issues

Trackpoint/Trackpad do not work on the Installation Procedure

Workaround: Use external USB mouse. Issue: [1]

Keyboard stops working

Sometimes the keyboard of the thinkpad stops working. This seems to be because of the other ACPI driver.

Workaround: Have an external USB keyboard just in case.

Device Specific Comments

ACPI

The latest ACPI drivers (version 3.22.03) seems to work fine with this. It recognizes four cores on boot.

Config.sys:

PSD=ACPI.PSD

Version info:

Signature:       @#D Azarewicz:3.22.03#@##1## 28 Nov 2013 11:00:28     DAZAR1
 ::::03::@@ACPI based PSD for eCS (c) 2013 D Azarewicz
Vendor:          D Azarewicz
Revision:        3.22.03
Date/Time:       28 Nov 2013 11:00:28
Build Machine:   DAZAR1
File Version:    3.22.3
Description:     ACPI based PSD for eCS (c) 2013 D Azarewicz


Video

If you are using Panorama driver, it is a good idea to update to version 1.03 (from Mensys beta downloads). It will allow you to select the 1366x768 video resolution.

Wired Network

The RealTek Semiconductor RTL8168D/8111D PCI-E Gigabit Ethernet Adapter for recognized with the R8110.OS2 network driver when it installed. But it did not work, it loads but it not works to connect to the network. So I used Multimac R8169.OS2 and it started to work.

Config.sys

DEVICE=X:\IBMCOM\MACS\R8169.OS2

Trackpoint/Trackpad

The trackpoint and trackpad of this device is producing an strange behavior. At first it did not work at all during the installation procedure, so an external USB mouse was required.

After updating ACPI to version to version 3.22.03, it starts working but sometimes it gives an strange behavior and ever movement of the mouse or mouse click (both trackpoint and trackpad) opens the "Windows List". The final word is that sometimes it works and sometimes not.

AMOUSE.SYS Version

I used AMOUSE.SYS from the installation.

DEVICE=X:\ECS\SYSTEM\AMouse\AMOUSE.SYS SMP

The version I currently have installed is:

Signature:       @#NB:2.75.00#@ Driver for Scroll Mouse (c) 2006
Vendor:          NB
Revision:        2.75.00
File Version:    2.75
Description:     Driver for Scroll Mouse (c) 2006

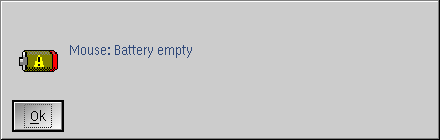

I also get this message from time to time which is very odd because the trackpoint do not have battery:


MOUSE.SYS Version

I changed from AMOUSE.SYS to MOUSE.SYS to see if I got a different result.

Signature:       @#IBM:10.163#@  OS/2 Mouse Device Driver
Vendor:          IBM
Revision:        10.163
File Version:    10.163
Description:     OS/2 Mouse Device Driver

MOUSE.SYS was worst. The trackpoing/Trackpad did not show any activity at all, and the USB Mouse worked to move the pointer, but clicking of the buttons stopped working.

Keyboard

The Thinkpad keyboard also shows some strange behaviour. Sometimes it works, sometimes it loose connection. The only workaround is to have an USB keyboard around just in case.

When the Thinkpad Keyboard stops working, you connect an USB keyboard and both starts working, after that you can disconnect the USB keyboard. But this happens a very few times, it is not very common.

Config.sys:

BASEDEV=IBMKBD.SYS

Version:

Signature:       @#D Azarewicz:10.165#@##1## 19 Jun 2013 11:35:54     DAZAR1
::::::@@IBM Keyboard Device Driver
Vendor:          D Azarewicz
Revision:        10.165
Date/Time:       19 Jun 2013 11:35:54
Build Machine:   DAZAR1
File Version:    10.165
Description:     IBM Keyboard Device Driver

This driver is the patched one from David Azarewicz with the ACPI driver.

USB

The USB drivers that cames on eComStation 2.1 works fine. Also the latests Lar's USB drivers and the USB drivers patched by ACPI. USBCALLS.DLL and USBRES.SYS was updated and it remains stable.

The config.sys looks like this:

BASEDEV=USBEHCD.SYS
BASEDEV=USBEHCD.SYS
BASEDEV=USBD.SYS
BASEDEV=USBHID.SYS
...
BASEDEV=USBMSD.ADD /REMOVABLES:8 /FLOPPIES:1
BASEDEV=USBCDROM.ADD

usbehcd.sys

Signature:       @#Lars Erdmann:10.197#@OS/2 USB EHCI compliant Device Driver
Vendor:          Lars Erdmann
Revision:        10.197
File Version:    10.197
Description:     OS/2 USB EHCI compliant Device Driver

usbd.sys

Signature:       @#Lars Erdmann:10.197#@OS/2 USB Device Driver
Vendor:          Lars Erdmann
Revision:        10.197
File Version:    10.197
Description:     OS/2 USB Device Driver

usbhid.sys

Signature:       @#IBM:10.162#@  OS/2 USB HID Class Driver
Vendor:          IBM
Revision:        10.162
File Version:    10.162
Description:     OS/2 USB HID Class Driver

WebCam

The Webcam is working with USBECD drivers from Wim Brul.

By putting in the config.sys:

 DEVICE=X:\OS2\BOOT\USBECD.SYS /D:05C8:0317:#### /N:$CHICON$

The device got recognized and named as "CHICON". After that you can use the W520TC exe files to take some snapshots.

Hardware Manager Screenshots

HW-Manager 01.png

HW-Manager 02.png
