By Martin Iturbide

I was playing around with the old OS/2 Warp 3 on Virtual Machines and I decide to document how to install MPTS and TCP/IP on this platform.

If you remember Warp 3 (Red or Blue), the version that used to came with diskettes, did not have much Internet/TCP/IP functionality included on it. Later IBM Released OS/2 Warp 3 Connect which have that thing included on the installer. Both basically both edition where the same Warp 3.

So, the easier way to install MPTS and TCP/IP is installing the "Warp Connect" components over Warp 3.

To do this you required:

  • Warp 3 Installed
  • A Warp Connect 3 CD/ISO.

Testing my Warp 3 Virtual Machine you need to mount the Warp Connect 3 ISO on virtualizer.

After that all the work is on Warp 3. Let's see some screnshots of the procedure:


Select Install.cmd from the Warp Connect CD

Select Install.cmd from the Warp Connect CD

It will start the OS/2 Warp Connect installer. Select the drive where it is going to be installed.

Warp3Net 2.png

There goes an "OK" to start.

Warp3Net 3.png

How do you want to do the install, to this machine? or to a machine on the network? On this case is on the VM I'm running.

Warp3Net 4.png

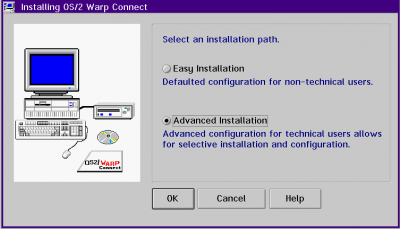

I always select "Advanced" to see what does it wants to install.

Warp3Net 5.png

On this case I just want TPC/IP, which requires MPTS and will install it.

Warp3Net 6.png

It will ask for you network adapter.

Warp3Net 7.png

Here it is another confirmation to start.

Warp3Net 8.png

It will do something and shutdown. But there is more to come.

Warp3Net 9.png

After rebooting it will start installing the MPTS.

Warp3Net 10.png

It will reboot again.

Warp3Net 11.png

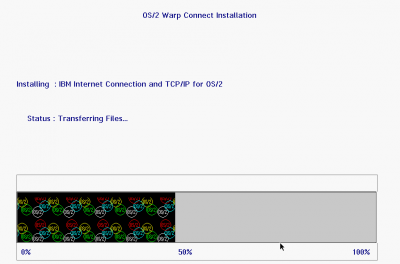

It will start isntalling "IBM Internet Connection and TCP/IP for OS/2".

Warp3Net 12.png

And now the installation is complete.

Warp3Net 13.png

Not on the OS/2 Warp 3 desktop you will find the "MPTS" icon and "TCP/IP" and "OS/2 Warp Connect Install/Remove" on the "OS/2 System".

Warp3Net 14.png

Now on MPTS you can select you network adapter.

Warp3Net 15.png

And you can also go to "TCP/IP" and configure it.

Warp3Net 16.png

And this is how we remembered a way to install TCP/IP network support for the old Warp 3.
