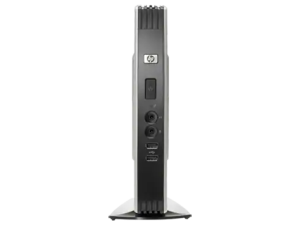

HP T5740 Thin Client
Jump to navigation
Jump to search

General Specs
- Model Number: t5740
- Processor: Intel Atom N280
- Memory:
- HDD:
- Graphics: Intel Mobile 4 Series Chipset Integrated Graphics Controller
- Chipset:
- Release Year: 2012
Devices
Component | Name | HardwareID | Status | Driver |
---|---|---|---|---|
Processor | Intel Atom N280 | ![]() |
ACPI- Boots | |
HBA | Intel 82801IBM/IEM (ICH9M/ICH9M-E) 2 port SATA Controller [IDE mode] | 8086:2928 | ![]() |
OS2AHCI |
HBA | Intel 82801IBM/IEM (ICH9M/ICH9M-E) 2 port SATA Controller [IDE mode] | 8086:292D | ![]() | |
Audio | Intel 82801I (ICH9 Family) HD Audio Controller | 8086:293E | ![]() |
Uniaud |
Video | Intel Mobile 4 Series Chipset Integrated Graphics Controller | 8086:2A42 | ![]() |
SNAP Graphics, Panorama |
Video | Intel Mobile 4 Series Chipset Integrated Graphics Controller | 8086:2A43 | ![]() | |
Network | Broadcom NetLink BCM57780 Gigabit Ethernet PCIe | 14E4:1692 | ![]() |
|
USB | Intel 82801I (ICH9 Family) USB UHCI Controller #1 | 8086:2934 | ![]() |
AN USB Drivers |
USB | Intel 82801I (ICH9 Family) USB UHCI Controller #2 | 8086:2935 | ![]() | |
USB | Intel 82801I (ICH9 Family) USB UHCI Controller #3 | 8086:2936 | ![]() | |
USB | Intel 82801I (ICH9 Family) USB UHCI Controller #4 | 8086:2937 | ![]() | |
USB | Intel 82801I (ICH9 Family) USB UHCI Controller #5 | 8086:2938 | ![]() | |
USB | Intel 82801I (ICH9 Family) USB UHCI Controller #6 | 8086:2939 | ![]() | |
USB | Intel 82801I (ICH9 Family) USB2 EHCI Controller #1 | 8086:293A | ![]() | |
USB | Intel 82801I (ICH9 Family) USB2 EHCI Controller #2 | 8086:293C | ![]() |
General Comments
- Report by Ben Hjelt
It was very easy to get running 100% with ACPI. The only pitfall was choosing the right USB port (one on the back) for the ArcaOS installer drive unless you wanted the 'can't find ARCAINST.ISO' error message. A nice feature is the rather loud internal speaker for system sounds.
