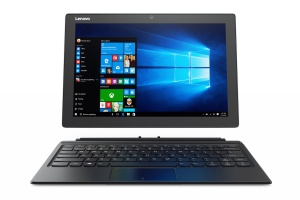

Lenovo Miix 510-12ISK

From OS2World.Com Wiki
Jump to navigation Jump to search


Devices

Component Name HardwareID Status Driver
Processor ACPI- Boots
UEFI Bios Works with ArcaOS 5.1.0
SATA Intel Sunrise Point-LP SATA Controller [AHCI mode] 8086:9D03 OS2AHCI
HDD Samsung NVMe SSD Controller SM951/PM951 144D:A802
Audio -- -- UNIAUD
Video Intel Skylake GT2 [HD Graphics 520] 8086:1916 Panorama
Wireless Network Qualcomm Atheros QCA9377 802.11ac Wireless Network Adapter5 168C:042h Not Working
Bluetooth - USB Atheros QCA9377 Bluetooth 4.1/4.0 0CF3:E360 Not Supported
USB 3.0 Intel Sunrise Point-LP USB 3.0 xHCI Controller 8086:9D2F AN USB Drivers
WebCam -- -- Not Tested
SD/MMC slot -- -- Not Tested
Touch Screen -- -- Not Tested
Input Device - USB Lenovo HID Device - Snap Keyboard/Mouse 258A:1015 AN USB Mouse and Keyboard driver.
Digitizer Pen -- -- Not Tested

Install Information

Report by Martin Iturbide
I tried with this machine a Windows 10 and ArcaOS 5.1.0 dual boot. This is why I choose to keep the BIOS in UEFI mode, and also because CMS mode gave me some problems.
  • To access selective boot device (or access the BIOS) hold the "Volume +" button and "power On" the Lenovo Miix 510 tablet.
  • Access the BIOS, check that UEFI is enabled and that Secure Boot is Disabled.
  • Reboot with "Volume +" button and "power On", or F12 also works and select the EFI USB Flash on the boot list.
  • Select to install with default values
  • Follow the normal ArcaOS install procedure for an EFI System partition system.
With the CSM compatibility mode I got several problems at start. First the bundled keyboard/trackpad didn't work, and lately it gave me problems to recognize the volume on where to install ArcaOS. That is why I only used the UEFI mode.

Hardware Report
