Lenovo Multi-function Mouse M300
Lenovo Multi-function Mouse M300.png
Rating: Very Good Cell green.gifCell green.gifCell green.gifCell green.gif
Driver: USBMOUSE

General Specs

  • Brand: Lenovo
  • HardwareID: 17EF:6054
  • Release Year: 2013

General Comments

The USB mouse works fine without any special driver on ArcaOS 5.0.1. It uses the regular includes USBMouse drivers.

Keys

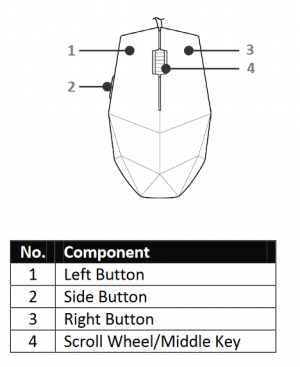

LenovoM300 Keys.png

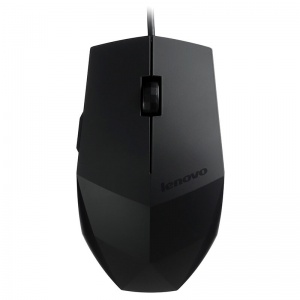

Lenovo Multi-function Mouse M300-002.jpg

On ArcaOS 5.0.1 if you press:

  1. Side button (2) + Left click (1) = Will produce an "Alt+Tab"
  2. Side button (2) + Left click (1) = Press the c key (lower case) (in Windows 8 it opens the Charm bar)
  3. Side Button (2) + Middle Button (4) = It is the Windows key. It will work as configured on ArcaOS.
  4. Side Button (2) + Drag Mouse down (10mm) = It will close the active window or program. Maybe it is similar to Alt+F4.

The scroll wheel works fine on Firefox and the OS windows.
