Lenovo ThinkPad 25 - Retro
Jump to navigation
Jump to search
General Specs
- Part Number:
- Processor: 7th Generation Intel® Core™ i7-7500U Processor (2.70GHz 4MB)
- Memory: 16.0GB DDR4 SODIMM 2133MHz
- Graphics: NVIDIA GeForce GT 940MX 2GB
- Wireless: Intel Wireless-AC 8265 (2x2) AC
Devices
| Component | Name | HardwareID | Status | Driver |
|---|---|---|---|---|
| Processor | 7th Generation Intel® Core™ i7-7500U Processor (2.70GHz 4MB) |  |
ACPI- Boots | |
| HDD | Advanced Host Controller Interface | |
OS2AHCI | |
| NVMe | |
Works with Arca's NVMe driver. | ||
| Audio | |
Works with latest Uniaud | ||
| Video | NVIDIA GeForce GT 940MX 2GB |  |
Not Tested | |
| Network | Intel Ethernet Connection I219-V | |
Using E1000B LAN Driver from Arca Noae. | |
| Wireless Network | Intel Wireless-AC 8265 (2x2) AC |  |
Not Working | |
| Wireless Bluetooth |  |
Not Supported | ||
| USB 3.0 | - | |
Works with Arca's USB Driver | |
| WebCam | Integrated WebCam | |
Not Tested |
General Comments
- Report by Sigurd Fastenrath
-

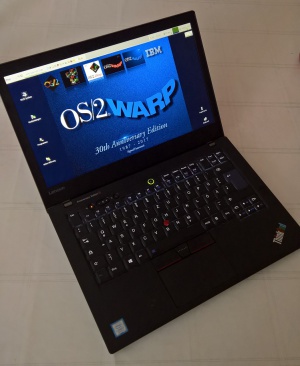

- OS/2 Warp 4.52
- OS/2 Warp 4.52 was installed by removing the Hard drive and cloning an image into it with DFSee.
- The Thinkpad 25 (based on the Thinkpad 470) has an option to disable the Touchpad in BIOS.
- The HDD was preinstalled with Windows 10 and it has GPT layout.
- Secureboot has to be deactivated, UEFI has to be switched to Legacy
- The M.2 NVMe SSD hard disk that came with the machine did not had OS/2 drivers at the time of this machine was released. It was replaced with a M.2 SATA card, the 1TB WD Blue 3D NAND SATA SDD M.2 2280 to have it working on OS/2, but please remember that not all M.2 NVMe adapters have SATA compatibility.
- ArcaOS 5.0.6
- ArcaOS 5.0.6 installation via USB Stick possible, one has to wipe the SSD though.
- NVMe SSD hard disk was later tested and reported as working with Arca's NVMe driver.
