MSI A320M Pro-VD Plus

From OS2World.com Wiki
Jump to: navigation, search

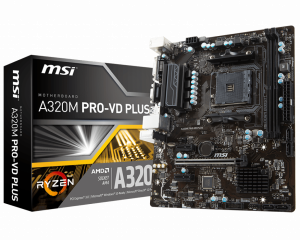

MSI A320M Pro-VD Plus.png

General Specs

Socket
AM4
Chipset
AMD A320
Processor
Supports AMD Ryzen 1st and 2nd Generation
Memory
Support DDR4 1866/2133/2400/2667/2933(OC)/3200(OC) Mhz
Release Date
August 2017

Devices

Component Name HardwareID Status Driver
Processor AMD Ryzen 5 first gen Processor Check.gif ACPI
SATA AMD FCH SATA Controller [AHCI mode] 1022:7901 Check.gif OS2AHCI
Audio AMD Family 17h (Models 10h-1fh) HD Audio Controller 1022:15E3 Vraag.gif Not tested. UNIAUD
Network Realtek RTL8111/8168/8411 PCI Express Gigabit Ethernet Controller 10EC:8168 Check.gif Works
Video AMD/ Vega [Radeon Vega 8 Mobile] 1002:15DD Check.gif Panorama
USB 2.0 VIA USB 2.0 1106:3104 Nope.gif Not working
USB 3.1 AMD Raven USB 3.1 1022:15E0 Nope.gif Not supported
USB 3.1 AMD Raven USB 3.1 1022:15E1 Nope.gif Not supported

General Comments

Tested by Ivan.

His testing conditions was:

  • MSI A320M Pro-VD Plus motherboard.
  • AMD Ryzen 5 first gen Processor
  • Saphire AMD Radeon Video card
  • 2 x 4GB DDR4 memory sticks
  • 1 x 1TB Seagate FireCuda SATA v3
  • Samsung S24E650 Monitor
  • Kensington Prp Fit MultiMedia USB Keyboard
  • Kensington Orbit Optical Trackball.

The USB 2.0 ports are not recognized, ArcaOS installer can boot but the USB mouse and keyboard can not operate.

A test was made to include a PCI USB 2.0 card slot, the card was recognized by the BIOS, but on ArcaOS the mouse and keyboard still do not work.

LAN
Works without problems.
Video
In my case video works VGA, DVI-D using the Panorama driver into a 28 inch 1920x1200 monitor. I have an ASUS board with HDMI whivk also works.
SATA
Also works, even for a DVD drive.
Audio
Rather than fight with the multiple adapters that this board has (HD audio, hdmi audio and some sort of generic audio), I just use a C-Media Unitek Y247A USB Audio‎ adapter with a Bluetooth transmitter attached to allow me to use headphones.
