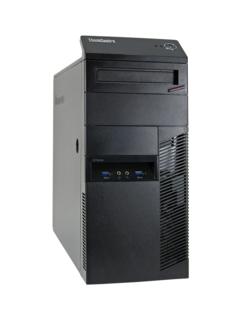

Lenovo ThinkCentre M93p Tower

- Manufacturer
- Lenovo
- Model
- ThinkCentre M93p Tower
- RAM
- 8 GB
- Hard drive
- 500 GB SATA
- USB 3.0 controllers
- 1
- USB 2.0 controllers
- 2
- Release Year
- 2013
General Comments
- Report by Neil Waldhauer
- USB 3.0 12.06 works partially. USB 2.0 12.06 is working great if USB 3.0 driver is not loaded. I'm not sure that this is explained in "known issues" in the readme.
- However, all computers seem to suffer from problems with hubs, KVM and other devices, and once problems occur, USB drivers get confused and then mouse, keyboard and mass storage do not work reliably. I thought I'd post this up here. I plan to submit a bug to Arca Noae, but feel free to post more information if you use hubs or KVM. Bugs are not limited to this computer.
Devices
Component | Name | HardwareID | Status | Driver |
---|---|---|---|---|
Processor | -- | -- | ![]() |
ACPI |
HDD - SATA | Intel 8 Series/C220 Series Chipset Family 6-port SATA Controller 1 [AHCI mode] | 8086:8C02 | ![]() |
OS2AHCI, DANIS506 |
Audio | Intel Xeon E3-1200 v3/4th Gen Core Processor HD Audio Controller | 8086:0C0C | ![]() |
Uniaud |
Audio | Intel 8 Series/C220 Series Chipset High Definition Audio Controller | 8086:8C20 | ![]() |
Uniaud |
Network | Intel Ethernet Connection I217-LM | 8086:153A | ![]() |
|
Video | Intel Xeon E3-1200 v3/4th Gen Core Processor Integrated Graphics Controller | 8086:0412 | ![]() |
Panorama |
USB 2 | Intel 8 Series/C220 Series Chipset Family USB EHCI #1 | 8086:8C31 | ![]() |
AN USB Drivers |
USB 2 | Intel 8 Series/C220 Series Chipset Family USB EHCI #2 | 8086:8C26 | ![]() |
AN USB Drivers |
USB 3 | Intel 8 Series/C220 Series Chipset Family USB xHCI | 8086:8C2D | ![]() |
AN USB Drivers |
