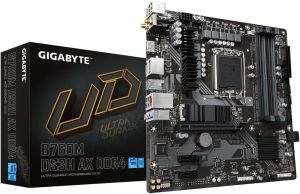

Gigabyte B760M DS3H
Jump to navigation
Jump to search

General Specs
- Socket:LGA1700
- Chipset:Intel B760 Express Chipset
- Release Date:January 6, 2023
Devices
Component | Name | HardwareID | Status | Driver |
---|---|---|---|---|
Processor | Intel(R) Core™ i5-12600K | ![]() |
ACPI | |
HDD - NVMe | Samsung NVMe SSD Controller 980 (DRAM-less) | 8086:144D | ![]() |
OS2AHCI, OS2ASPI |
HDD - SATA | Intel Raptor Lake SATA AHCI Controller | 8086:7A62 | ![]() |
OS2AHCI, OS2ASPI |
Audio | Intel Raptor Lake High Definition Audio Controller | 8086:7A50 | ![]() |
Uniaud |
Network | Realtek RTL8125 2.5GbE Controller | 10EC:8125 | ![]() |
|
Wireless Network | Intel Raptor Lake-S PCH CNVi WiFi | 8086:7A70 | ![]() |
|
Video | Intel Alder Lake-S GT1 [UHD Graphics 730] | 8086:4692 | ![]() |
Panorama |
USB (xHCI) | Intel Raptor Lake USB 3.2 Gen 2x2 (20 Gb/s) XHCI Host Controller | 8086:7A60 | ![]() |
AN USB Drivers |
General Comments
- Tested by David McKenna
- Dual boot Windows 11 and ArcaOS 5.1 and was able to install everything and it 'works', but ArcaOS only sees 860MB of memory even though 16GB is installed. No amount of BIOS tweaking would change that.
- Sound works, but the NIC is not recognized (a Realtek 2.5GB). I installed an Intel 1GB PCIe NIC (Intel 82574L Gigabit Network Connection 8086:10D3) just for this situation.
- Report by Peter Rehfisch
- It boots under UEFI to ARCAOS 5.1 with NVME drive partitioned as GPT. I have 16GB of memory and have setup a 4GB RAM disk.
- The network drivers does not work, all other components function well.
