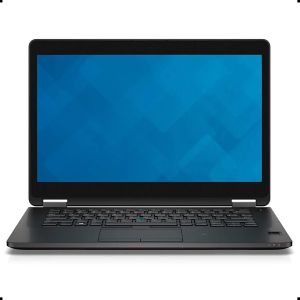

Dell Latitude E7470
Jump to navigation
Jump to search

General Specs
- Model Number: 0T6HHJ
- Processor: Intel(R) Core(TM) i5-6300U CPU @ 2.40GHz
- Memory:12 GB RAM
- HDD: 200GB
- Graphics: Intel Skylake GT2 [HD Graphics 520]
- Chipset:
- Release Year: 2016
Devices
| Component | Name | HardwareID | Status | Driver |
|---|---|---|---|---|
| Processor | Intel(R) Core(TM) i5-6300U CPU @ 2.40GHz | ACPI- Boots | ||
| HDD | Intel Sunrise Point-LP SATA Controller [AHCI mode] | 8086:9D03 | OS2AHCI | |
| Audio | Intel Sunrise Point-LP HD Audio | 8086:9D70 | Uniaud | |
| Video | Intel Skylake GT2 [HD Graphics 520] | 8086:1916 | Panorama | |
| Network | Intel Ethernet Connection I219-LM | 8086:156F | E1000B.OS2 | |
| Wireless Network | Intel Wireless 8260 | 8086:24F3 | Not Supported | |
| USB 3.0 | Intel Sunrise Point-LP USB 3.0 xHCI Controller | 8086:9D2F | AN USB Drivers | |
| Card Reader | Realtek RTS525A PCI Express Card Reader | 10EC:525A | Not Tested | |
| Webcam / USB | HS Realtek Semiconductor Corp. | 0BDA:5765 | Not Tested | |
| Smart Card / USB | FS Broadcom Corp. | 0A5C:5834 | Not Tested | |
| Bluetooth / USB | FS Intel Corp. Bluetooth wireless interface | 8087:0A2B | Not Supported | |
| Finger Print / USB | FS Elan Microelectronics Corp. | 04F3:2247 | Not Supported | |
| WWAN Modem / USB | Dell WWAN Modem DW5811e | 413c:81b6 | Not Tested |
General Comments
- Report
Run using ArcaOS 5.1 with UEFI support.
