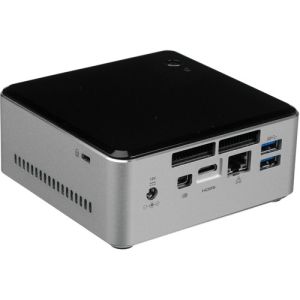

Intel NUC Kit D54250WYKH
Jump to navigation
Jump to search


General Specs
- Model Number: D54250WYKH
- Processor: Intel Core i5-4250U Processor (3M Cache, up to 2.60 GHz)
- Memory:16 GB
- HDD: 256 GB disk
- Ports: 4 USB ports. 2x front and 2x rear USB 3.0.
- LAN:: Intel Ethernet Connection I218-V
- Graphics: Integrated Intel Graphics
- Release Year: Q4'13
Devices
Component | Name | HardwareID | Status | Driver |
---|---|---|---|---|
UEFI | -- | -- | ![]() |
Boots in Compatibility Mode |
Processor | Intel Core i5-4250U Processor | -- | ![]() |
ACPI |
HDD - SATA | Intel 8 Series SATA Controller 1 [AHCI mode] | 8086:9C03 | ![]() |
OS2AHCI |
Audio | Intel Haswell-ULT HD Audio Controller | 8086:0A0C | ![]() |
Uniaud |
Audio | Intel 8 Series HD Audio Controller | 8086:9C20 | ![]() |
Uniaud |
Video | Intel Haswell-ULT Integrated Graphics Controller | 8086:0A26 | ![]() |
Panorama |
USB 2.0 | Intel 8 Series USB xHCI HC | 8086:9C31 | ![]() |
USBXHCD |
USB 3.0 | Intel 8 Series USB EHCI #1 | 8086:9C26 | ![]() |
USBXHCD |
Network | Intel Ethernet Connection I218-V | 8086:1559 | ![]() |
Multimac |
General Comments
- Report by Rick Smith.
- He initally had some issues with the HDD, ArcaOS can not see the HDD on the installation procedire. He wiped the HDD and create a non formatted MSDOS partition table with gparted. After that ArcaOS installation was able to see the HDD.
