JVC MP-XV941

From OS2World.Com Wiki
Jump to navigation Jump to search

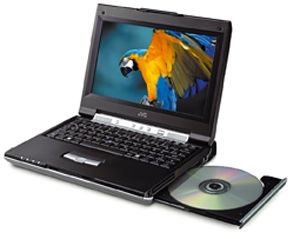

JVC Mobile Note MP-XV941 (same HW Base with JVC Mobile Note MP-XV841 and Asus S300N)

General Specs

  • Model Number: MP-XV941
  • Processor: Intel Pentium M Centrino ULV, 1000 MHz
  • Memory: 256 or 512MB DDR memory standard (max 2GB), 2x MicroDIMM Slots
  • HDD: 40 or 60 GB UltraATA/100 IDE HDD
  • Graphics: Intel 82852 / 855GM
  • Release Year: 2004

Devices

Chipset:

Component Name HardwareID Status Driver
Chipset Intel 82852/82855 GM/GME/PM/GMV Processor to I/O controller 8086:3580 ACPI
Chipset Intel 82852/82855 GM/GME/PM/GMV Processor to I/O controller 8086:3584 ACPI
Chipset Intel 82852/82855 GM/GME/PM/GMV Processor to I/O controller 8086:3585 ACPI
IDE controller Intel 82801DBM(ICH-4M) IDE controller 8086:24CA IBM, Danis
Audio Intel 82801DB-ICH4 with Analog Devices AD1980 8086:24C5 UNIAUD *
Video Intel 82852/855GM 8086:3582 SNAP Graphics, Panorama
Network Realtek RTL-8100/8101L/8139 PCI Fast Ethernet Adapter 10EC:8139 8139 RNDIS
Wireless Network Intel PRO/Wireless 2200BG [Calexico2] Network Connection 8086:4220 GenMU
USB Intel 82801DB/DBL/DBM (ICH4/ICH4-L/ICH4-M) USB UHCI Controller 8086:24C2 USB
USB Intel 82801DB/DBL/DBM (ICH4/ICH4-L/ICH4-M) USB UHCI Controller 8086:24C4 USB
USB Intel 82801DB/DBL/DBM (ICH4/ICH4-L/ICH4-M) USB UHCI Controller 8086:24C7 USB
USB Intel 82801DB/DBM (ICH4/ICH4-M) USB2 EHCI Controller 8086:24C7 USB
CardBus Ricoh RL5C476 II 1180:0476 PCMCIA 8.0, SS2PCIC1**
FireWire Ricoh R5C552 IEEE1394 Controller II 1180:0552 Fire a1***
Notes
* Audio Contoller works with ACPI > 3.23.15 out-of-the-box
  Older ACPI Versions: need to download [PCICFGWR][88watts.net/dlfile.php?F=pcicfgwr-], unzip it into /OS2/BOOT/ and put this line into the CONFIG.SYS:
  BASEDEV=PCICFGWR.SYS 0:31:5 B0x3c=17

** Need IBM PC Card Services 8.0 and Intel SS2PCIC1.SYS Driver to work. An FAT-formatted SD-card need to be in the SD-card slot, otherwise CardBus / PCMCIA Card wouldn't get power.
   BASEDEV=PCMCIA.SYS /V
   BASEDEV=SS2PCIC1.SYS /E
*** FireWire is recognized, when using this driver: ftp://ftp.netlabs.org/pub/firewire/fire-a1.zip. Driver is in alpha state.
